Industrial Projects—Badsha Textile Ltd. (Badsha Group)

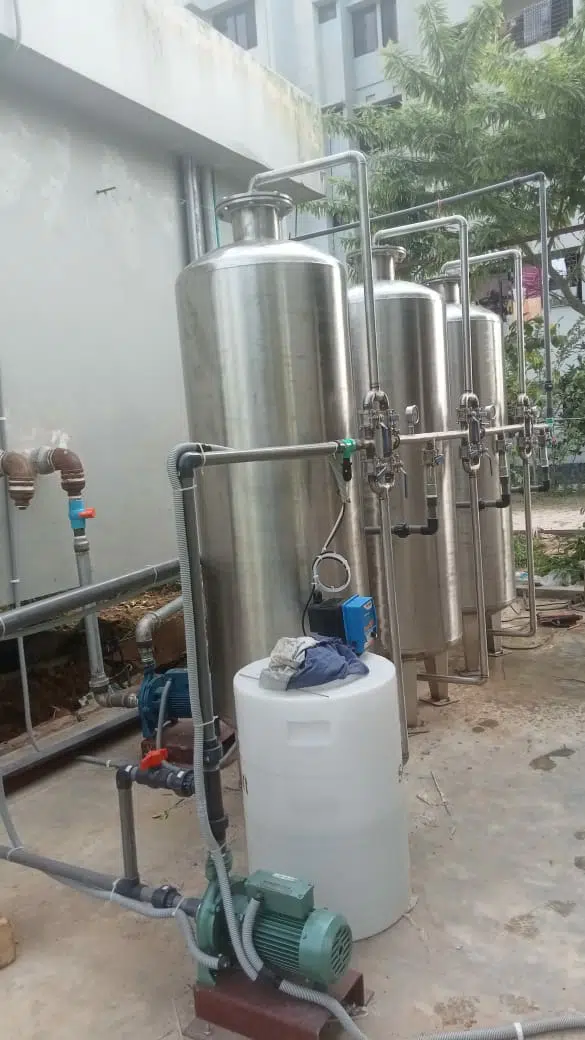

40 m³/hr - Water Softener Plant With Demineralization & Reverse Osmosis
Vessel Type: Stainless Steel (SS)
This project involved the design, supply, installation, testing, and commissioning of a 40 cubic meters per hour (40 m³/hr) water treatment system consisting of a Water Softener Unit, Demineralization (DM) Plant, and Reverse Osmosis (RO) System.
The system was engineered to ensure consistent production of high-quality treated water suitable for industrial process applications, boiler feed water, cooling systems, and other critical operations requiring low hardness and low TDS water.
1️⃣ Water Softener Unit
Type: SS vessel-type pressure system
Media: High-capacity cation exchange resin
Purpose: Removal of hardness (Calcium & Magnesium ions)
Operation: Automatic regeneration with brine solution
Control Valve: Fully automatic multiport valve
Design: Corrosion-resistant stainless steel tank with internal strainer and distribution system
This stage reduces scaling potential and protects downstream equipment such as RO membranes and DM resins.
2️⃣ Reverse Osmosis (RO) System
Capacity: 2 m³/hr
Membranes: High-efficiency thin-film composite membranes
TDS Reduction: Up to 95–99%
Instrumentation: Pressure gauges, flow meters, conductivity meter
The RO system effectively removes dissolved salts, organics, suspended solids, and microorganisms.
3️⃣ Demineralization (DM) Plant
Type: Cation + Anion Exchange System
Output Quality: Near-zero hardness and very low conductivity
Application: High-pressure boiler feed and process water
The DM plant ensures complete removal of ionic impurities to achieve ultra-pure water standards.
Key Features
✔ Stainless Steel (SS) vessel construction for durability and corrosion resistance
✔ Fully automated control system
✔ Skid-mounted compact design
✔ Online monitoring instrumentation
✔ Easy operation and maintenance
✔ Designed as per industrial safety and quality standards
Project Scope Covered
Raw water analysis & system design
Fabrication of SS vessel-type tanks
Supply & installation
Electrical & control panel integration
Testing & commissioning
Operator training & documentation
Industrial Projects—Simtex Industries PLC.
100 m³/hr - Water Softener Plant
Vessel Type: MS (Mild Steel) Tank
This project involved the design, fabrication, installation, and commissioning of a 100 cubic meters per hour (100 m³/hr) industrial Water Softening Plant.
The system was developed to remove hardness from raw water and supply consistent soft water for industrial operations such as boiler feed, cooling towers, process lines, and utility services.
The plant was constructed using MS (Mild Steel) tank-type pressure vessels with proper internal anti-corrosion coating to ensure long service life and structural strength.
1️⃣ Softener Vessel
Type: MS fabricated tank (pressure type)
Internal Coating: Food-grade epoxy / anti-corrosive lining
Design Pressure: As per site requirement
Media: High-capacity cation exchange resin
Underdrain System: HDPE / SS distributor system
The MS tank was fabricated with proper thickness calculation and reinforcement to handle continuous industrial operation.
2️⃣ Resin & Softening Process
Removes Calcium (Ca²⁺) and Magnesium (Mg²⁺) ions
Reduces hardness to near-zero levels
Protects boiler tubes, pipelines, and heat exchangers from scaling
Ensures improved system efficiency and longer equipment lifespan
3️⃣ Regeneration System
Automatic / Semi-automatic multiport valve system
Brine tank for resin regeneration
Salt dosing system
Backwash and rinse cycle configuration
The regeneration process ensures continuous performance and maintains consistent water quality.
Key Features
✔ Heavy-duty MS fabricated tank
✔ Cost-effective solution for large-capacity demand
✔ High structural strength
✔ Long operational life with protective internal coating
✔ Easy maintenance access
✔ Designed for continuous 24/7 industrial operation
Scope of Work
Raw water analysis
Process design & engineering
MS tank fabrication
Resin loading & piping installation
Electrical & control integration
Testing & commissioning
Operator training
Industrial Projects
Drinking Water Plant
The Drinking Water Plant project was finished to ensure a sustainable and reliable clean, drinkable water source in a local community. The plant was designed to cope with the increasing need for safe drinking water by the use of advanced water treatment technologies, which purify raw water from nearby sources, thereby making it meet all national and international drinking water standards.
Key Features:
- Advanced Filtration System
- Sustainable Energy Use
- Automated Control Systems
- Emergency Backup
- Wastewater Management
Industrial Projects

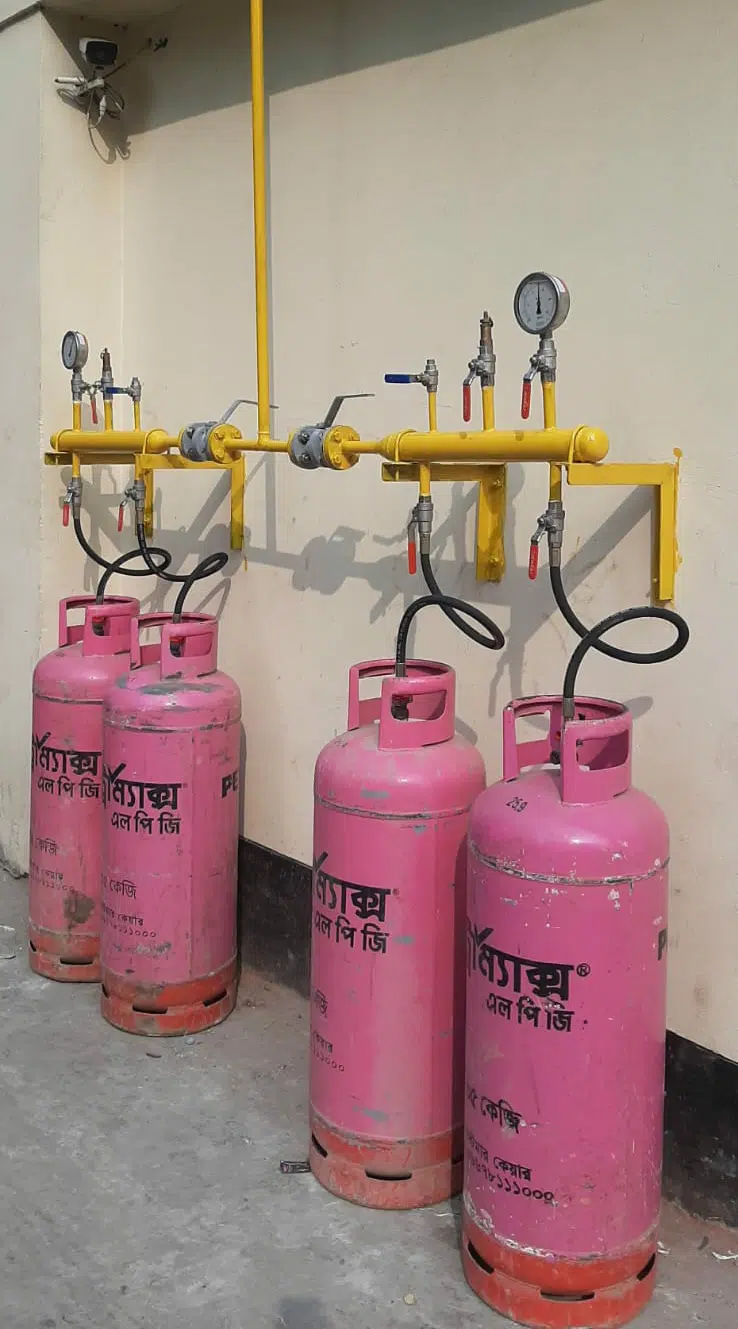

LPG Reticulation System Installation
Following the capping of the LPG Reticulation System Project, the task was to improve a safe, efficient, and reliable distribution network for Liquefied Petroleum Gas (LPG) to residential, commercial, and industrial consumers. This project was expected to replace or supplement the drafters’ traditional sources with clean, environmentally friendly LPG-supplied fuel for a sustainable energy solution to the ever-increasing demand for cooking, heating, and industrial applications.
Key Features:
- Centralized LPG Storage
- High-Quality Pipeline
- Advanced Safety Features
- Flexible Connectivity
